Interactive CFL LED Light Display

Pedal Power Event Display Bulb Power Comparison

(Exhibit for Teenagers & Adults at Green Festival / Science Fair / Children's Museum )



Get A Quote Now or call 480-489-411



The interactive CFL LED display gives people first hand experience with having to generator 4X the

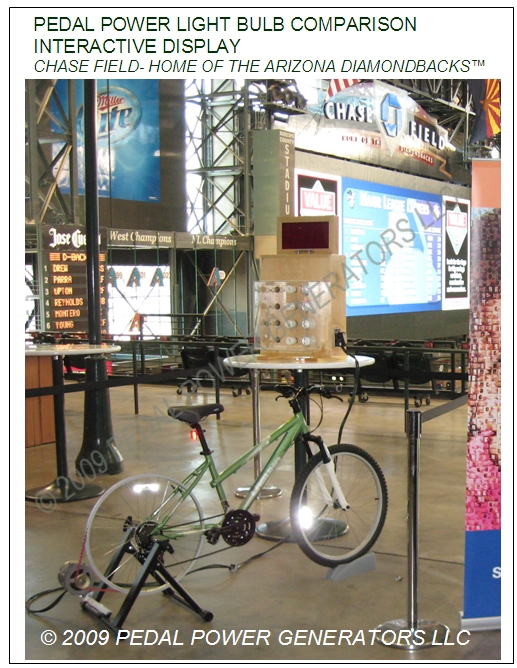

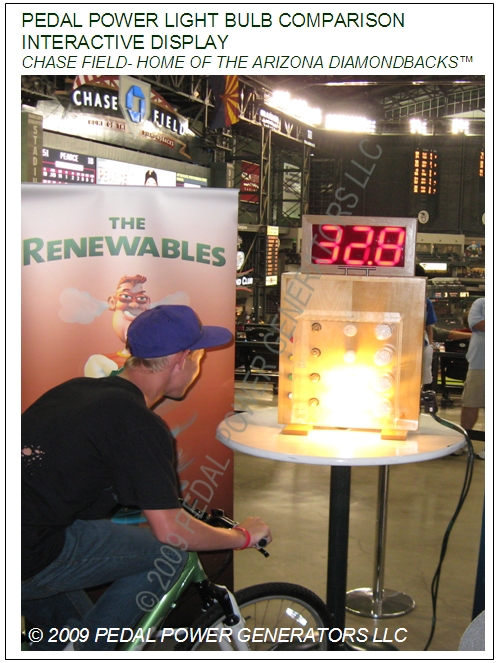

energy to power up an incandescent bulb vs a CFL or LED bulb.  There  are many options available to customize this display to your event and the message you are trying to convey.  The most popular upgrade options are the the hard case with wheels, extra large power meter,  adding input for 2 or 3 bikes to participate at once, computer power monitoring software customized with your company logo and artwork,  and floating balls that rise higher and higher the more you pedal.  Below are some photos of this system setup at a professional baseball game to promote a CFL bulb program.





VIDEO DEMO



pedal power bicycle generator cfl led light emitting diode comparisoin event display



PHOTOS



HARD CASE PHOTO







General components of CFL LED Incandescent Light box

1. Locking Wheels
2. Ascent Bike Trainer Stand
3. 30 Amp Generator
4. Size 10 AWG power cable
5. Mountain bike
6. Turnbuckle latches to open lid
7. Anodized Black Knobs to secure light box when in use
8. Power meter which shows how many watts the rider is putting out
9. Light box
10. Column 1: Four 25 Watt Incandescent Bulbs  (total power consumption is 100W)
11. Column 2: Four 10 Watt CFL
12. Column 3: Four 6 Watt LED bulbs
13. Lifting Handles
14. Control Panel



parts of the led cfl incandescent pedal power light box explained.

  1. Power Meter displays how much power a person is putting out to light the bulbs.
  2. Black metal electrical enclosure
  3. Bank of 4 incandescent bulbs 25 Watts each
  4. Bank of 4 CFL Compact fluorescent bulbs,  ~11 Watts Each
  5. Bank of 4 LED Light Emitting Diode bulbs, ~6 Watts Each
  6. 1/4 Inch plastic protective cover so the lights don't get damaged during shipping or events.



LCB-100W OWNER / OPERATING MANUAL

(CLICK PDF LINK TO THE RIGHT)

Click here

pdf pedal power cfl led incandescent light power comparison box



Get A Quote Now or call 480-489-4111
