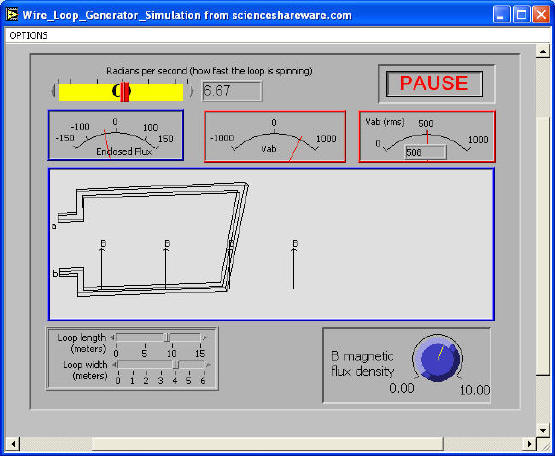

This is a simulation that you can download and run on your Windows computer. Below is a screen shot of the wire loop simulation.

If you decide to download and install the simulation program you will be able to adjust the magnetic field, loop length, loop height, and loop angular velocity.

The magnetic field is represented by the vectors pointing in the upward direction.  Each magnetic field vector is labeled with the letter "B".

As you make these changes you will be able to see changes in the amount of voltage generated.
